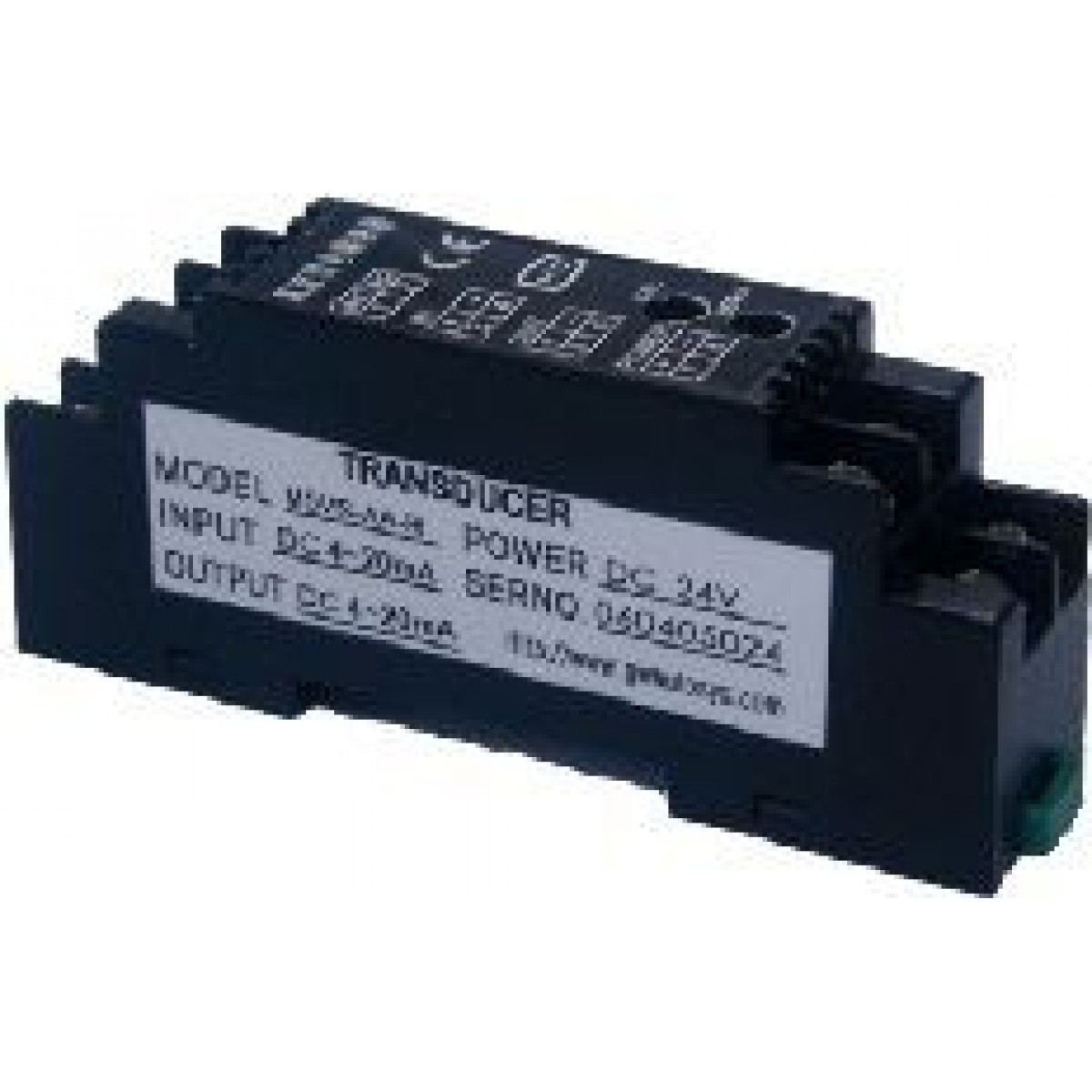

M-System's M5 / B5 / W5 Series signal conditioners are designed to accept a wide variety of process signal input and provide a standard and non-standard DC output. Only 1.6'' (41mm) deep modules can be installed anywhere, even behind the panel cover. Th M5 series features signal channel four-wire models, while the B5 series are two-wire models. Model B5SN input loop powered isolator can tap into the existing 4-20mA loops without needing to add additional wiring for power. Model B5VS 2-wire output loop powered isolator is designed to accept a DC voltage or current signal input and provide a 4-20mA output. The W5 series signal splittes provide two isolated DC outputs of independent ranges.
|
Specifications
| Product Type | Isolators | |
| Operating Temperature Range | F | 23 to 131°F |
| C | —5 to 55°C | |
| Dimensions | " W | 0.98 |
| " H | 3.82 | |
| " D | 1.61 | |
| CE Compliance | Yes | |
| Brand | M-System | |
| Manufacturer number | M5VS-AA-R | |
| Input type | mA | 4 to 20 |
| Output type | 1 | 4-20 mA |
| Description | Isolator | |
| Model | M5VS-AA-R | |
